Food Pick-up Locker
Online Food Delivery Solution

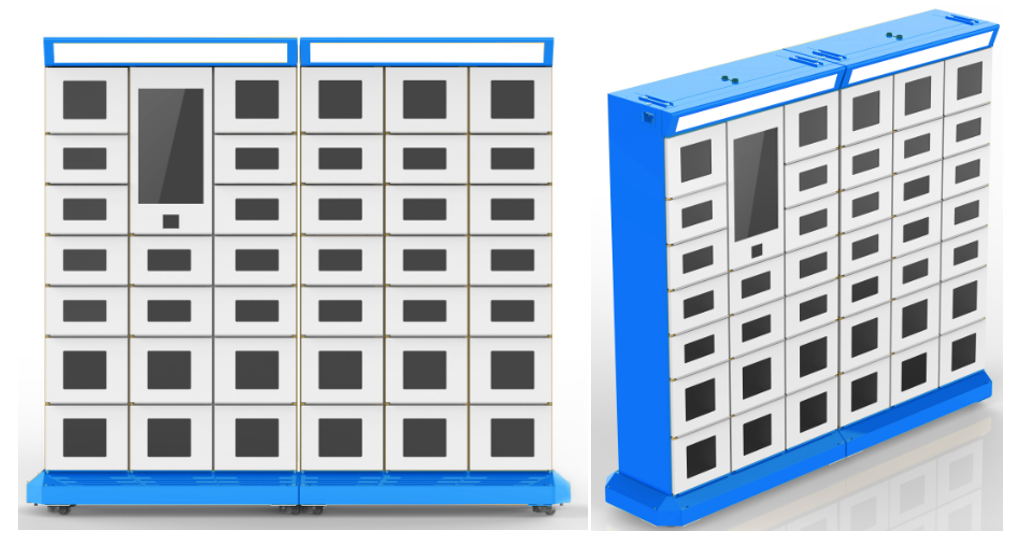

Food Pick-up Locker
Big Capacity with Various Size Cell
---18 Cells on Host, 21 cell on locker bank
---Size: 10(W)*9(H)*12.6(D)Inches
Temperature control for each individual cell---Up to 122℉/50℃
UVC Disinfection---Broad spectrum UV light
Module Design---Locker banker can up to 10
Transparent Windows
Optional Barcode Scanner
Specification
Standard Food Locker Specification
Item | Spec. |
Combination | Host + Tower |
Color | Customization |
Steel | Cold rolled steel plate DC01 |
Painting | Electrophoresis + Powder Coating |
Dimension | 1052*442.5*1919mm(Host) |
(without roof) | 1052*429*1919mm(Tower) |
Box Qty. | Host: 18; Tower: 21 |
Box size | L: 251*230*320mm; S: 251*160*320mm |
Box temp. control | Carbon fiber heating wire + temperature control switch + fuse |
Range: 35℃~50℃/95℉~122℉ | |
Disinfection | UVC lamp disinfection |
Box Lock | Electromagnetic lock |
PC | i.mx6, 2GB memory, 8GB storage, Android version 4.4.2 |
Power | Customization |
Host max. power consumption: about 550W | |
Tower max. power consumption: about 600W |
Dimension

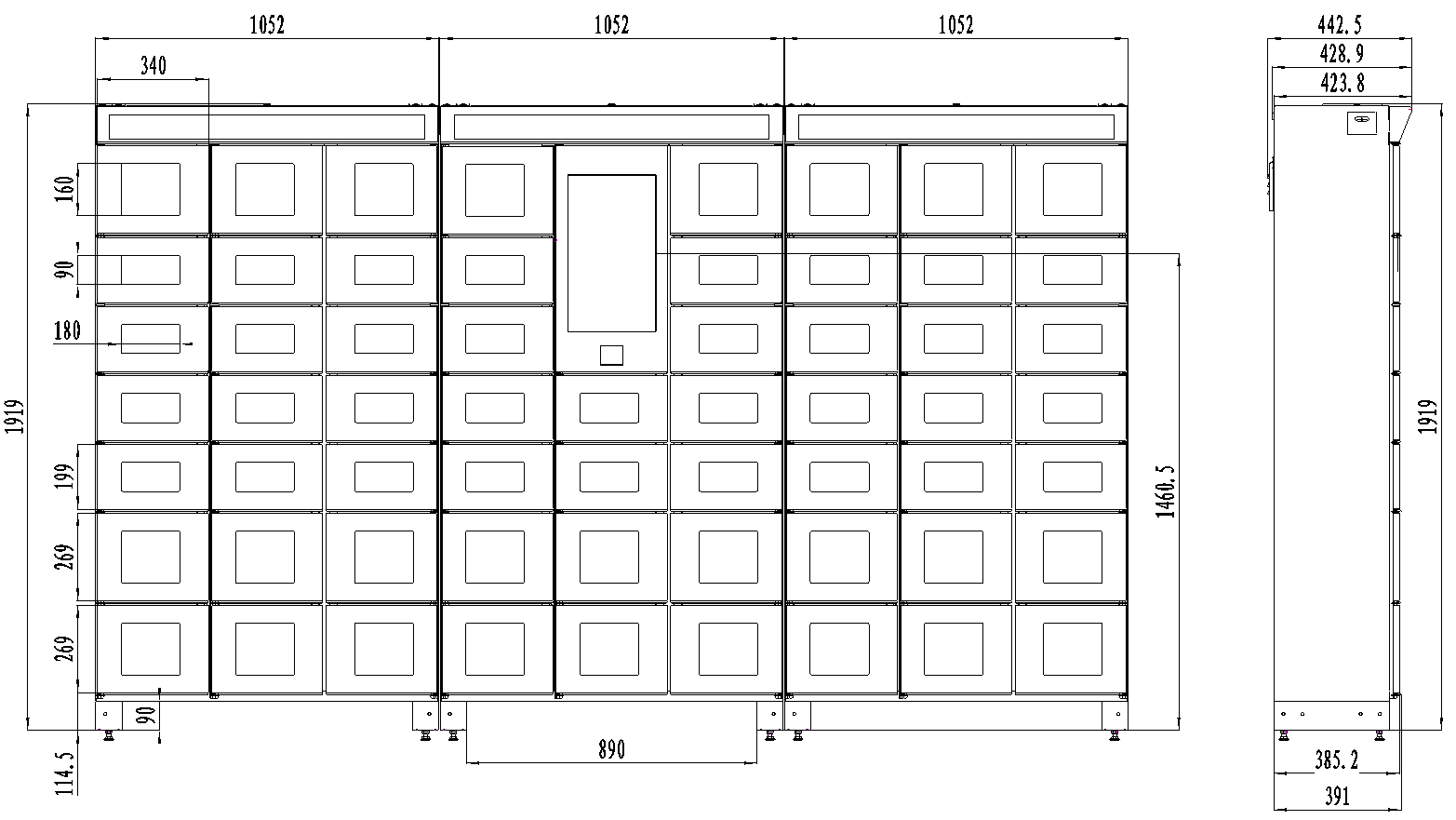

Standard Food Locker Dimension
Benefit Analysis
 | For Rider
|
| For Customer
|
| For Platform
|
| For Investor
|
