Product Description
Features
Strong Adaptability
Applicable for various kinds of commodity with large weight, big size and irregular package
Cascading Extension Group
“Host locker and Daisy-chain” Modularization design, 1 host locker could be match 8 daisy-chains at max
Less land occupation, flexible combination, multi-scenario
Anti dumping Design
Well-rounded design of ground & wall fixation to keep lockers stable and deep-set
Comprehensive Protection
Electricity leakage preventive protection and lightning surge protection

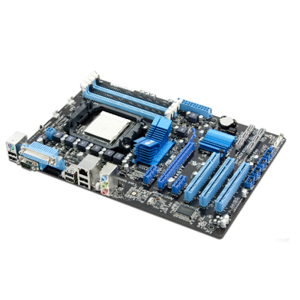

Stable and Reliable Industrial MCU
Stable operation in various conditions
Android main board has passed through large-scale verification (100,000 sets in use)
Box Door Reliability
High strength box door design. Open at the angle of 90 degrees with 10 kilograms hanged for 24 hours, it still could operate normally
High Performance Lock
Electric motor lock developed on the base of SNBC’s patent is more reliable, anti-interference performance and has passed through market verification
Easy Maintenance
One button to open all boxes under the status of normal maintenance
Open all boxes by emergency door when the power is cut off

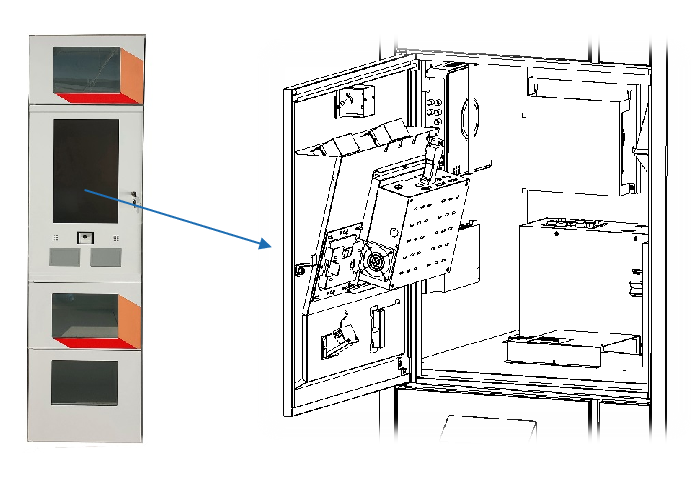

Side-open structure of main computer, more space for maintenance
Human-Friendly Design
Ergonomics design of LCD screen and keyboard to be applicable for specific population
Parameter
Appearance | Application Environment | In-Door |
Cascading Configuration | 1 Host Locker with 8 Daisy-Chains at Max | |

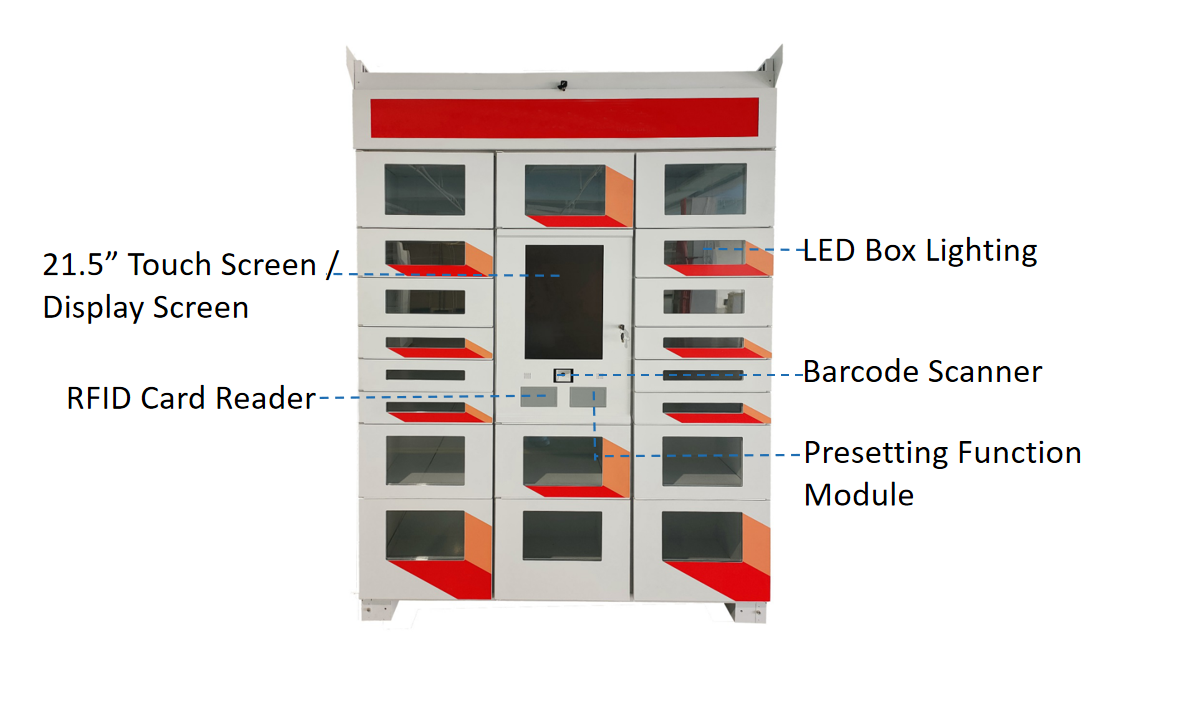

Electrical Module | Touch/display Screen | Size:21.5” |
Main Control | Android | |
Box Lock | Electric Motor Locker | |
Box Lighting | LED | |
Barcode Scanner | 1D/2D | |
Communication Module | Land LINE, 4g Router(Optional) | |
Environment Adaptability | Operation Voltage | AC 220V±10% 50Hz |
Operation Temp. | 0℃～+60℃ | |
Relative Humidity | 10%～95%RH（non-condensing） | |
Parameter | Power Consumption | Host Locker：about 78W |
Daisy-Chain：about 40W | ||
Weight | Host Locker：about 60kg | |
Daisy-Chain：about 100kg |
Application
Cloud platform
