Feature
Key Features of SNBC Parcel Locker with Bluetooth Connection:

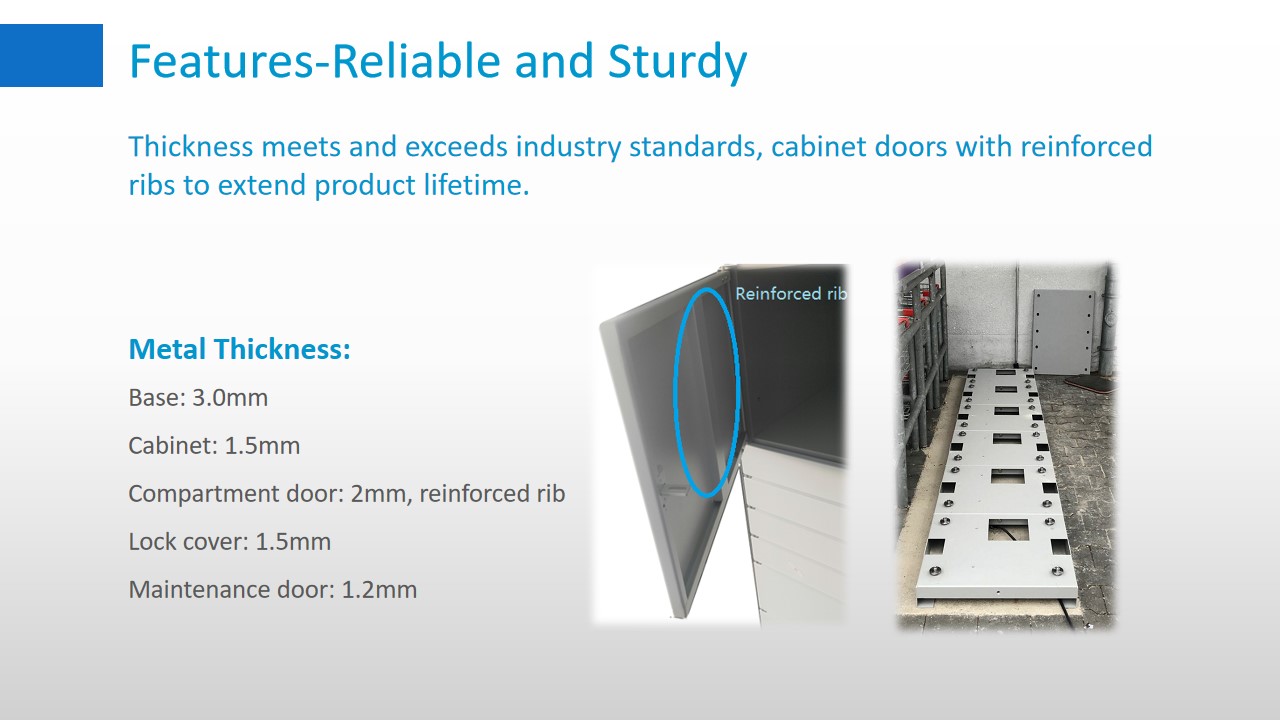

Robust and Durable
Thickness of the sheet metal meets and exceeds industry standards
Compartment doors with ribs extend product lifetime
The improved lock design to last up to 80,000 openings

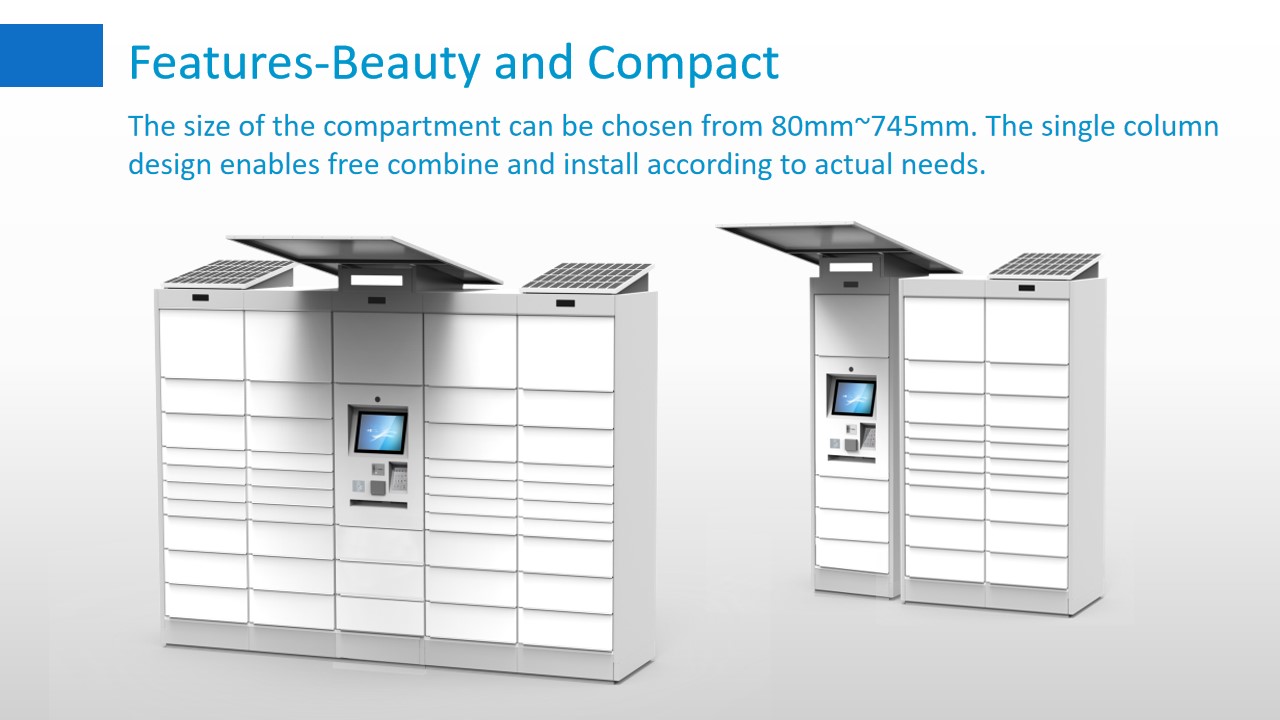

Fashion and Concise Design
No visible screws, and safe screws are used in touchable area
Easy Installation
Easy installation and levelling design
Modular column design for suitable configuration
Energy Saving
Optional of solar panel and battery to save power cost
Safe and Reliable
Passed EU standard CE andEN1627, obtained static report and fire safety assessment
Cabinet IP54 and touch screen IP65 allow outdoor operation
High strength electromagnetic lock makes the package much safer
Child safe design
Cost Saving

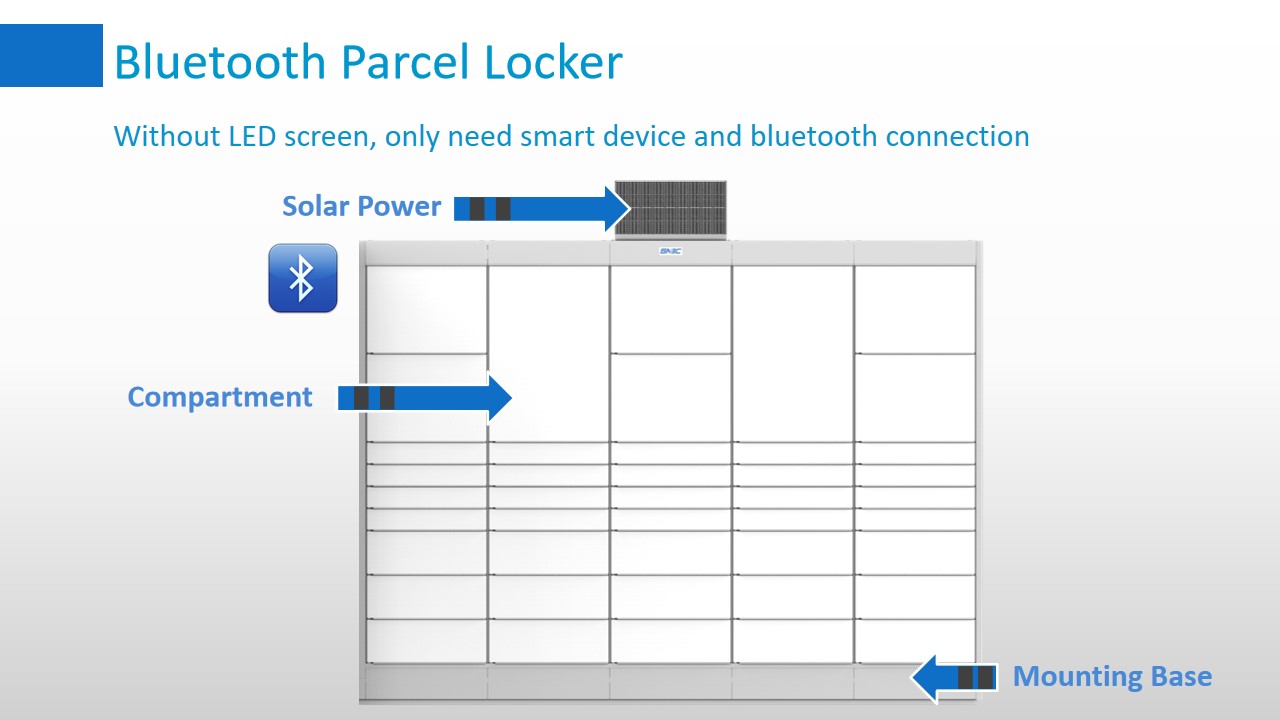

Connect with smart device by Bluetooth instead of operational display decreases the price of the parcel locker
The power supplied by solar panel and battery no limits to position and wiring decreases the cost of the installation.
Modular Hardware:
Bluetooth board Solar panel + Battery or Wall electricity
Optional | Mobile data connection (optional LPWAN or GSM) |
Corner Module | |
Host Locker Slave Locker
| 8 boxes: 1 Large +5 Medium +4 Small |
9 boxes: 2 Large +3 Medium +4 Small | |
10 boxes:1 Large +5 Medium +4 Small | |
Box Size:
| X Large: W450±10×H730±10×D610±10mm |
Large: W450±10×H365±10×D610±10mm | |
Medium: W450±10×H175±10×D610±10mm | |
Small: W450±10×H80±5×D610±10mm | |
Operation Conditions
|
-30~50℃ |
Specification
| Items | Specification |
| Color | Customized |
| Surface Treatment | Electrophoresis & Powder Coating |
| Logo | Customized |
| Compartment Size | S:W450±10×L80±5×H410±10mm M:W450±10×L175±10×H410±10mm L:W450±10×L365±10×H410±10mm XL:W450±10×L745±5×H410±10mm |
| Load-bearing | S:10kg M:20kg L:31.5kg XL:31.5kg |
| Material | Body: DC01, thickness 1.5mm Base: DC01, thickness 3.0mm Compartment Door: DC01, thickness 2.0mm Maintenance Door: DC01, thickness 1.5mm |
| Lock | Electromagnetic lock |
| Communication | Bluetooth 4.0( support Android & IOS) |
| Operating Voltage | AC 230 V AC / 16 A |
| Operating Temperature | -20℃~40℃ |
| Storage Temperature | -25℃~50℃ |
| Humidity | 10%~95%RH(Noncondensing) |
| Certification | CE/Static report/Fire protection requirement |
| Safety Protection | EN 1627 level RC2 CEN TS 16819 safety level 5 |
